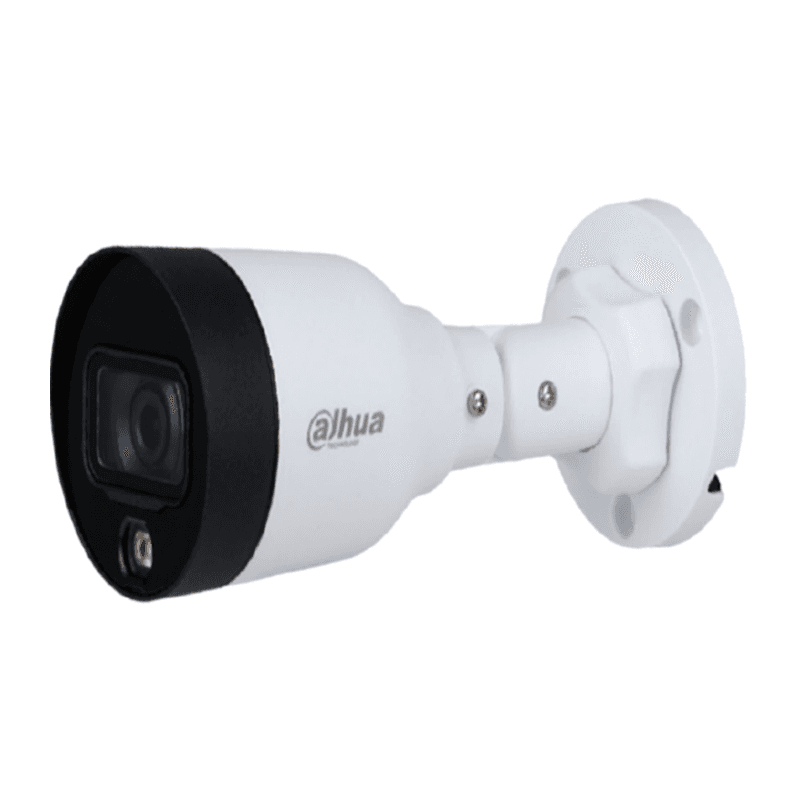

CÁMARA IP DAHUA DH-IPC-HFW1239S1-LED-S5 BULLET 2MP FULL COLOR
SKU: IPCHFW1239S1
· Sensor de imagen CMOS de 2MP, 1 / 2.7 ”, baja iluminación, alta definición de imagen · Salidas máx. 2MP (1920 × 1080) @ 25/30 fps · Códec H.265, alta tasa de compresión, tasa de bits ultrabaja · LED incorporados, distancia máxima de LED: 15 m · ROI, SMART H.264 / H.265, codificación flexible, aplicable a varios entornos de ancho de banda y almacenamiento · Modo de rotación, DWDR, 3D DNR, HLC, BLC, marca de agua digital, aplicable a varias escenas de monitorización · Detección de anomalías: detección de movimiento, manipulación de vídeo, red desconexión, conflicto de IP, acceso ilegal · Soporte de alimentación de 12V DC / PoE · Protección IP67
- Sistema de envíos
- Garantía con la marca y tienda
- Soporte ICB
Technical Specification Camera Image Sensor 1/2.7″ 2Megapixel progressive CMOS Effective Pixels 1920 (H) × 1080 (V) ROM 16 MB RAM 64 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.005 Lux @F1.6 LED Distance 2.8 mm: 10 m (32.8ft) 3.6 mm: 15 m (49.2ft) LED On/Off Control Auto/Manual LEDs Number 1 Pan/Tilt/Rotation Range Horizontal: 0°–360° Vertical: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Mount Type M12 Focal Length 2.8 mm 3.6 mm Max. Aperture 2.8 mm: F1.6 3.6 mm: F1.6 Field of View 2.8 mm: Pan 110° × Tilt 59° × Diagonal 132° 3.6 mm: Pan 91° × Tilt 48° × Diagonal 109° Iris Type Fixed Close Focus Distance 2.8 mm: 0.6 m (2.0 ft) 3.6 mm: 1.1 m (3.6 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 37.3 m (122.4 ft) 14.9 m (48.9 ft) 7.5 m ( 24.6 ft) 3.7 m (12.1 ft) 3.6 mm 53.3 m (174.9 ft) 21.3 m (69.9 ft) 10.7 m (35.1 ft) 5.3 m (17.4 ft) Video Video Compression H.265; H.264; H.264H; H.264B; MJPEG Smart Codec Yes Video Frame Rate Main Stream: 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) Stream Capability 2 streams Resolution 1080p (1920 × 1080); 1.3m (1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640× 480); CIF (352 × 288/352 × 240) Bit Rate Control CBR/VBR Video Bit Rate H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6400 Kbps Day/Night Color/B/W BLC Yes HLC Yes WDR DWDR White Balance Auto/natural/street lamp/outdoor/manual/regional custom Gain Control Auto/Manual Noise Reduction 3D DNR Motion Detection OFF/ON (4 areas, rectangular) Region of Interest(RoI) Yes (4 areas) Smart Light Yes Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution.) Mirror Yes Privacy Masking 4 areas Network Network RJ-45 (10/100 Base-T) Protocol IPv4; IPV6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; DDNS ;Multicast Interoperability ONVIF (Profile S); CGI; P2P; Genetec User/Host 20 Edge Storage FTP; Dahua Cloud Browser IE Chrome Firefox Management Software Smart PSS; DSS; DMSS Mobile Phone IOS; Android Certification Certifications CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B Power Power Supply 12V DC/PoE (802.3af) Power Consumption Environment Operating Conditions -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% Storage Temperature -40°C to +60°C (-40°F to +140°F) Ingress Protection IP67
