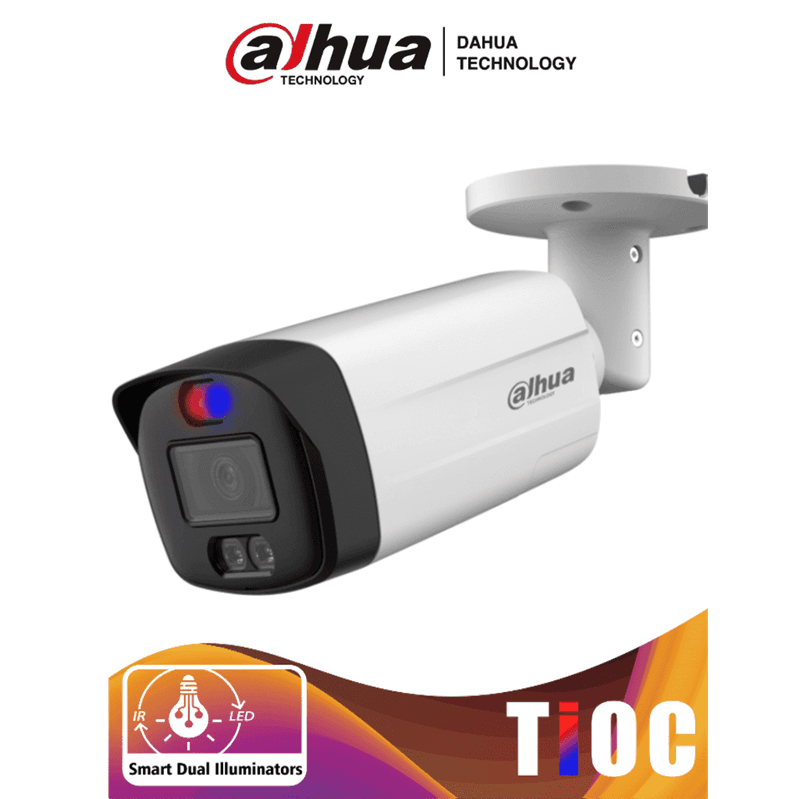

CAMARA ANALOGA DAHUA HAC-ME1509THN-PV BULLET 5MP TIOC FULL-COLOR WIZS 40M 3.6MM

Camera Pixel 5MP Image Sensor 5MP CMOS Max. Resolution 2880 (H) × 1620 (V) Scanning System Progressive Electronic Shutter Speed PAL: 1/3 s–1/100000 s NTSC: 1/4 s–1/100000 s Min. Illumination 0.001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) S/N Ratio >65 dB Illumination Distance IR: 40 m (131.23 ft) Warm light: 40 m (131.23 ft) Illuminator On/Off Control Auto; manual Illuminator Number 2 (IR light) 2 (Warm light) Pan/Tilt/Rotation Range Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° Lens Lens Type Fixed-focal Lens Mount M12 Focal Length 2.8 mm; 3.6 mm Max. Aperture F1.0 Field of View 2.8 mm: H: 111°; V: 57°; D: 131° 3.6 mm: H: 89°; V: 47°; D: 104° Iris Control Fixed Close Focus Distance 2.8 mm: 1.5 m (4.92 ft) 3.6 mm: 2.2 m (7.22 ft) DORI Distance Lens Detect Observe Recognize Identify 2.8 mm 66.0 m (216.54 ft) 26.4 m (86.61 ft) 13.2 m (43.31 ft) 6.6 m (21.65 ft) 3.6 mm 78.0 m (255.91 ft) 31.2 m (102.36 ft) 15.6 m (51.18 ft) 7.8 m (25.59 ft) Video Video Frame Rate CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps; AHD: PAL: 4M@25 fps; NTSC: 4M@30 fps; TVI: PAL: 4M@25 fps; NTSC: 4M@30 fps; CVBS: PAL: 960H; NTSC: 960H Resolution 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) Day/Night Auto (ICR)/Color/B/W BLC BLC; HLC; WDR; HLC-Pro WDR 120dB White Balance Auto; Area white balance Gain Control Auto; manual Noise Reduction 3D NR Illumination Mode Smart IR&WL; WL Mode; IR Mode Defog Electronic defog Digital Zoom 4× Mirror Yes Privacy Masking Off/On (8 areas, rectangle) Active Deterrence Sound Warning Audio 1: Alarm Audio 2: No parking here Audio 3: Private land no entry. Audio 4: Warning zone keep off Audio 5: Welcome Volume: high/medium/low; duration: 5 s–60 s; 110 dB Red/Blue Light Warning Flash: 5 s–60 s; frequency: high/medium/low Certification Certifications CE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14) Port Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port Audio Input One channel built-in MIC Alarm Output 1 channel Power Power Supply 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) Power Consumption Max 10.5W (12 VDC, LED on) Environment Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F) Operating Humidity Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F) Protection IP67 Structure Casing Material Metal front cover + plastic rear barrel + metal bracket Product Dimensions 240.7 mm × Φ90.7 mm (9.48″ × Φ3.57″) Packaging Dimensions 299 mm × 119 mm × 111 mm (11.77″ × 4.69″ × 4.37″) Net Weight 0.48 kg (1.06 lb) Gross Weight 0.74 kg (1.63 lb) Installation Wall mount; ceiling mount; vertical pole mount
