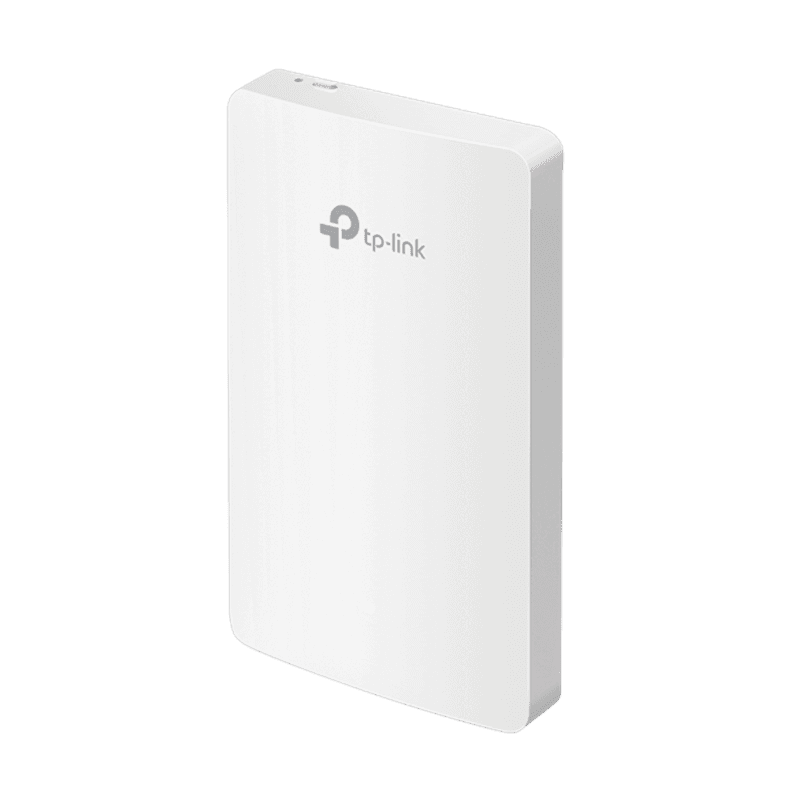

ACCESS POINT D/PARED TP LINK EAP235-WALL GIGABIT WIFI MU-MIMO OMADA AC1200

CARACTERÍSTICAS DE HARDWARE Interfaz • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)△ Bloqueo de Seguridad Físico Yes Botones Reset Fuente de Alimentación 802.3af/802.3at PoE Consumo de Potencia 9.8 watts /24.4 watts (PoE Out Included) Dimensiones 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) Antenas 2 Dual-Band Antennas • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 4 dBi Montaje Wall Plate Mounting CARACTERÍSTICAS INALÁMBRICAS Coverage 25㎡(300 ft²)*** Clientes concurrentes 200+** Estándares Inalámbricos IEEE 802.11a/b/g/n/ac Frecuencia 2.4 GHz and 5 GHz Tasa de Señal • 5 GHz: Up to 867 Mbps • 2.4 GHz: Up to 300 Mbps Funciones Inalámbricas • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • Seamless Roaming(802.11k/v) • QoS(WMM) • MU-MIMO • Band Steering • Beamforming • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP Seguridad Inalámbrica • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Local LAN port based VLAN • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise Potencia de Transmisión CE: ≤20 dBm (2.4 GHz, EIRP) ≤23 dBm (5 GHz, EIRP)FCC: ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) GESTIÓN Omada App Yes Gestión Centralizada • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller Acceso a la nube Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. Alertas por Correo Electrónico Yes LED de control ON / OFF Yes Control de Gestión de Acceso MAC Yes SNMP v1,v2c Acceso al Registro de Sistema Local/ Registro del Sistema Remoto Local/Remote Syslog SSH Yes Gestión basada en Web HTTP/HTTPS Gestión L3 Yes Gestión Multi-sitio Yes VLAN de Gestión Yes Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller. Otros Certificaciones CE, FCC, RoHS Contenido del Paquete • Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall • Installation Guide • Mounting Screw
